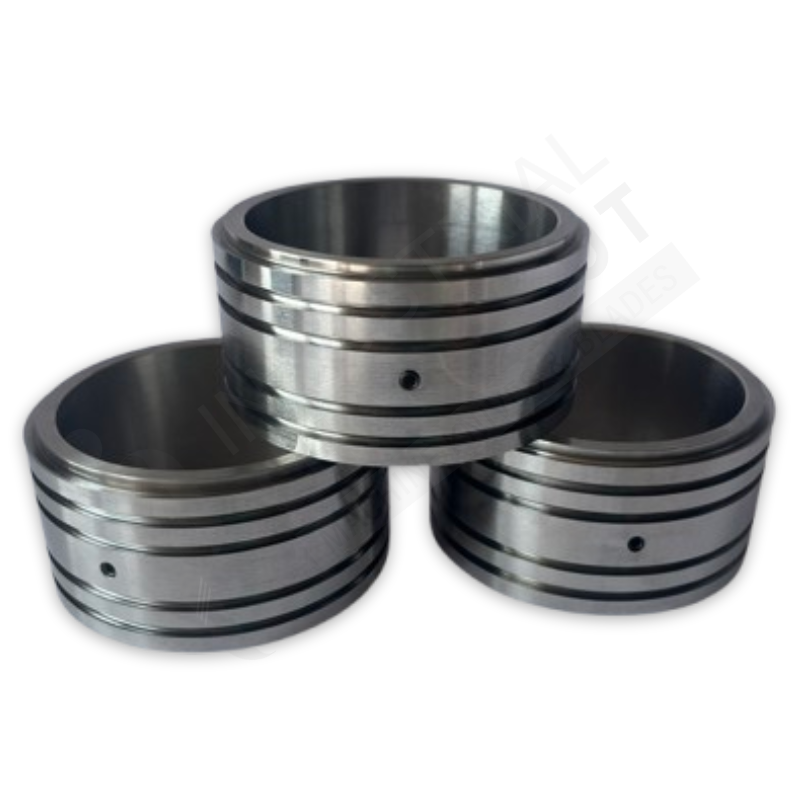

MULTI GROOVE BOTTOM KNIVES

Multi-groove bottom knives are indispensable components in paper cutting and slitting systems, designed to enhance precision and efficiency. These knives are equipped with multiple grooves that ensure optimal alignment and stability during cutting operations.

Their unique design makes them a preferred choice for applications requiring high-speed performance and consistent cutting quality.

The multi-groove knife blocks, along with their pitch, are precision-engineered to the strictest tolerances, guaranteeing consistently accurate cutting widths.

Standard total thickness : 50 / 100 mm

Standard groove width: from 2.5 mm, Standard pitch: from 5 mm

Material: Commonly used materials are 1.50% Chrome Alloy steel or 12% high chrome alloyed tool steel Standard cutting angle: 3° / 90°

1.2067 | EN31 | SAE 52100

1.2379 | D2 | SKD11
